Results of Revision Knee Arthroplasty With Individual Implants

Full Text

BACKGROUND

Total knee arthroplasty (TKA) is an effective method of treatment of grade 3 knee osteoarthritis (according to the Kellgren-Lawrence classification) [1]. More than 400.000 TKAs are performed in the USA annually [2]. The number of revision arthroplasties increase along with the rise in primary knee arthroplasties. The main reasons of this fact are periprosthetic joint infection (PJI), aseptic loosening of prosthetic components and prosthesis instability, periprosthetic fractures and joint contracture [3]. PJI takes places in 0.5-2.0% of cases after the primary TKA and in 15-20% after the revision knee arthroplasty [4].

Two-stage revision arthroplasty is a gold standard for chronic PJI treatment [5]. The first stage includes the removal of infected prosthetic components with further vast debridement of devitalized tissues and the radical necrectomy. As a result of these procedures, the defects form in the area of the distal part of the femur and proximal part of the tibia [6]. Infectious process having been stopped, the revision knee arthroplasty is performed at the second stage in combination with the implantation of prosthetic components which enable to replace existing defects of the bone tissue.

Extensive bone defects significantly complicate the possibility of stable fixation and correct spatial positioning of revisional prosthetic components. The primary goal of revision arthroplasty is to restore the volume of lost bone tissue [7]. It is considered necessary to fix the prosthesis at least in two anatomic zones of the femur and the tibia in order to achieve its stable fixation and to increase its lifetime. This concept is described by R. Morgan-Jones [8, 9].

Scientific search for the variants of replacement of lost bone tissues still continue. Tantalum cones, bone cement, modular metal augments, auto- and allotransplants are used to replace bone defects nowadays [10]. Modern implants allow to substitute large metaphyseal tibial and femoral defects including bone tissue damages of types 2B and 3 according to the AORI (Anderson Orthopaedic Research Institute) classification [8, 11, 12].

However, officinal implants have significant limitations in case of vast bone tissue defects. In that cases, mega-arthroplasty with replacement of the proximal part of the tibia or distal part of the femur, arthrodesis or amputation are the most frequent. With advances in additive technologies, it has become possible to create implants using computed tomography (CT) data that can be applied for bone defect replacement of almost any complexity, form and size [10]. 3D printing enables to produce implants taking into account individual characteristics of patients that improves postoperative treatment results [13].

Thus, basing on foreign publications, we suppose that individual implants enable to replace severe bone tissue deficit in case of revision arthroplasty. Thereby, we performed an analysis of treatment results of patients with vast bone defects (AORI types 2B and 3) of the proximal part of the tibia and/or distal part of the femur with custom-made implants.

Aim of the study. To present clinical and radiological results of surgical treatment of patients with vast bone defects (AORI types 2B and 3) of the proximal part of the tibia and/or distal part of the femur which underwent revision knee arthroplasty with custom-made implants.

METHODS

Study design

A single-center retrospective study was performed basing on the treatment results of patients of the Research Medical University Hospital that enrolled 24 patients which had undergone surgical treatment concerning the loosening of knee joint spacer from 2017 to 2021.

Inclusion criteria: AORI types 2B and 3 bone defects, antibacterial spacer loosening.

Exclusion criteria: signs of decompensation of severe concomitant diseases (hematologic, immunologic, urogenital, endocrine, psychiatric, cardiovascular, dermatovenerologic, neurologic etc.).

All patients underwent revision knee arthroplasty with custom-made implants (9 femoral and 18 tibial), produced on 3D printing device. Among them were 20 (83%) women and 4 (17%) men aged from 35 to 79 years (68.5 [62; 73.5]). Ten (42%) patients had surgeries on the right knee, 14 (58%) patients on the left one.

Twenty-three (96%) patients had revision arthroplasty with custom-made implants concerning antibacterial spacer loosening, 1 (4%) patient – concerning aseptic spacer loosening associated with periimplant fracture. All patients had vast bone defects that were measured in X-rays and CT scans at the stage of preoperative planning. Bone defects were classified according to AORI [14]. Defects of the proximal part of the tibia were diagnosed in 15 (62.5%) out of 24 patients, of the distal part of the femur – in 6 (25%) patients, of the distal part of the femur and the proximal part of the tibia – in 3 (12.5%) patients. AORI type T3 defect was identified in 12 (50%) patients, F3 defect – in 1 (4.17%) patient, F2B defect – in 8 (33.3%) patients.

All patients had 1 to 6 (2 [2; 3.5]) prior knee surgeries in their medical history (Tab. 1).



Table 1

Clinical characteristics of patients

ID	Age, y.o.	VAS before surgery	Defect type	Number of prior surgeries	Cause of surgery
1	71	8	F3	3	2
2	35	6	T2B	3	1
3	69	4	T3	3	1
4	69	10	T3	2	1
5	65	7	F2B; T2B	3	1
6	72	5	T3	4	1
7	61	8	T2B	2	1
8	67	4	F2B	3	1
9	58	6	F2B	4	1
10	68	6	T3	5	1
11	79	5	T3	5	1
12	67	7	T2B	2	1
13	67	6	T3	2	1
14	76	8	T3	4	1
15	71	7	T2B	2	1
16	77	7	F2B	1	1
17	47	6	T3	6	1
18	75	5	T3	2	1
19	79	6	T3; F2B	2	1
20	70	8	T2B	2	1
21	76	7	T3; F2B	2	1
22	53	6	T3	2	1
23	63	8	F2B	2	1
24	51	7	F2B	2	1
Mean value	66.1	6.2	–	2.8	–



Patients’ follow-up period after the surgery was 5 months to 4.3 years (28 [8; 38] mths.). Surgery duration was 110 [92.5; 143] minutes, blood loss – 250 [225; 300] ml, post-operative bed-days – 7 [5; 10] days.

All patients had knee X-rays in the anteroposterior and lateral views before the surgery, immediately after the surgery and in 1, 5, 6 and 12 months in the postoperative period. Evaluation of range of motions was performed at the preoperative stage as well as 3, 6 and 12 months after the surgical intervention.

At the stage of preoperative planning all patients underwent knee punction with the following bacterial culture test of the punctate taken 3 times at 1-month intervals.

Preoperative planning and implant production

Multislice spiral computed tomography (CT) with 1 mm-thick slices and full-length X-rays of lower extremities (Full Leg Full Spine — FLFS) were taken at the first stage in order to produce custom-made implants. Then a three-dimensional computer model of the knee joint was created. It was followed by the simulation of the bone defect surface with the use of cut and crop tools that allowed to remove artifacts and hypertrophic scars visualized as bone structures. Afterwards the 3D model of the proximal part of the tibia and/or distal part of the femur of the intact (contralateral) joint was mirrored with its following precision positioning to the place of the bone defect in order to replace the latter. Then the Boolean substruction operation was carried out to produce 3D model of the custom-made implant. Pores were made on the implant surface for better osteointegration. The following topologic 3D implant refinement was performed using the SIMP method (Fig. 1). Finally, the implant was 3D printed using Titanium-Aluminium-Vanadium (Ti6Al4V) alloy and sterilized.

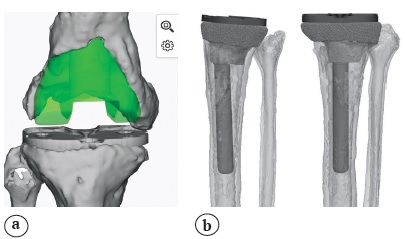

Fig. 1. The stage of computer modeling of an individual implant for the replacement of the distal femur (а) and proximal tibia (b) bone defect



Surgical technique

Surgical intervention was performed under spinal anesthesia in supine position of a patient. Knee arthrotomy was carried out over the old postoperative scar, spacer components were removed, marginal modeling resection and patella denervation, if necessary, were performed (Fig. 2). Then the synovial fluid was aspirated and soft tissue fragments were recovered from 5 different parts for the following bacteriological study.



Fig. 2. Defects of the distal femur and proximal tibia



Implant bed modeling for the components of semiconstrained and fully constrained prostheses was carried out using standard instruments. The sizes of femoral and tibial components were chosen according to CT scans. Bone defects were replaced by custom-made 3D implant depending on their localization (proximal part of the tibia or distal part of the femur) (Fig. 3).

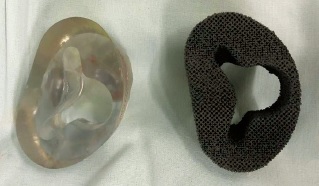

Fig. 3. An individual implant made on a 3D printer



Finally, prosthetic components were implanted using the bone cement (Fig.4). Two doses of bone cement in combination with thermoresistant antibiotics were applied to prevent infectious complications. Then the range of motions was checked, the joint stability was evaluated, the wound was sutured layer-by-layer and knee X-rays in two views were taken (Fig. 5).



Fig. 4. The implanted individual endoprosthesis components



Fig. 5. Postoperative X-rays of the right knee in direct and lateral projections



Evaluation of results

All patients completed questionnaire survey before the surgery and 3, 6 and 12 months after the surgery. Their results were evaluated according to VAS, KSS, WOMAC and SF-36 international scales. In KSS questionnaire the points from 80 to 100 corresponded to excellent results, from 70 to 79 – to good results, from 60 to 69 - to satisfactory results and under 60 – to unsatisfactory ones. In case of WOMAC questionnaire 0-14 points meant excellent results, 15-28 points – good results, 29-38 points – satisfactory results and more than 38 points – unsatisfactory results. SF-36 questionnaire evaluated physical and mental health. The higher was the score, the better was the quality of life.

Postoperative patient management

All patients had antibiotic prophylaxis (before the surgery, during the surgery and 8 hours after the end of the surgery) and thromboprophylaxis (anticoagulants) in the postoperative period. Since the 2^nd day after the surgery the patients were allowed to walk with partial weight bearing on the operated knee using crutches. They were discharged from the hospital within 4-14 days (7.7±3.5). In case of pain syndrome, analgesics were administered. Sutures were removed 18-21 days after the surgery. Walking with full-weight bearing was allowed 6 weeks after the surgery according to examination results and X-rays.

Statistical analysis

Statistical analysis of study results was performed using Statistica 10.0 software (StatSoft, USA). Descriptive statistics were presented as Me [25р;75р] (where Me stands for median [25р;75р] – 25^th and 75^th percentiles) and/or relative value (%). Wilcoxon test was applied to compare the variables in the dependent groups. The differences were statistically significant in case of р<0.05.

RESULTS

There were no signs of individual implant loosening in 23 out of 24 (96%) patients in the postoperative period. One patient had deep periprosthetic infection that required revision surgery. In all cases, precision positioning of prosthetic components was achieved in accordance with the parameters of preoperative planning.

Follow-up examination 12 months after the surgery showed that 9 out of 24 patients (37.5%) was able to walk without additional support, 10 out of 24 patients (41.7%) – with cane, 4 out of 24 (16.7%) – with crutches, 1 out of 24 (4.2%) – with walkers. No periprosthetic fractures occurred intra- and postoperatively.

Eleven out of 24 (45.8%) patients had excellent results according to KSS, 9 (37.5%) patients – good results, 4 (16.67%) patients – satisfactory results. Evaluation of the results according to WOMAC scale showed that 8 out of 24 (33.3%) patients had excellent results, 13 (54.2%) patients – good and 3 (12.5%) patients – satisfactory. Statistically significant pain syndrome decrease was observed in all patients (р<0.01) that was evident by positive dynamics according to VAS.

All patients also showed positive dynamics in both physical and mental health according to the SF-36 questionnaire (р<0.01) (Tab. 2).



Table 2

Patient survey results in 12 months, Me [25р; 75р]

Scale		Before surgery	After surgery	p
VAS		6.0 [5.5; 70]	1.0 [0; 2]	0.01
KSS		40 [34; 42]	84 [79; 88]	0.01
WOMAC		50.5 [46.5; 56.5]	17.5 [13; 25]	0.01
SF-36	Physical health	31 [19; 43]	77 [67; 82]	0.01
	Mental health	43 [34; 50]	91 [87; 93]	0.01



Range of motions in the operated joint increased in all patients in comparison with preoperative values (р<0.05) (Tab. 3).



Table 3

Change of knee joint function values after revision arthroplasty with individual implants, Me [25р; 75р]

Parameter	Follow-up period, months
	0	3	6	12
Range of motions in the knee joint, deg	15 [13; 20]	75 [70; 80]*	85 [70; 95]*	90 [85; 95]*
Flexion angle, deg	20 [15; 25]	75 [70; 80]*	85 [70; 95]*	90 [85; 95]*
Extension angle, deg	5 [3; 5]**	0 [0; 0]*	0 [0; 0]*	0 [0; 0]*

* — statistical significance of differences comparing to preoperative values (р<0.05);

** — extension deficit in the knee joint



DISCUSSION

Custom-made implants for treating patients with vast bone defects are used more and more often in surgical practice nowadays [15]. However, as a rule, the choice of method is determined by surgeon’s preferences and availability of each of technologies at a certain health care facility [16]. Lower extremity amputation is one of the treatment options if there is no possibility to replace the bone defect using standard implants [17].

G. Burastero et al. reported clinical and biomechanical results of treating patients with bone defects of the femur and the tibia using custom-made porous metaphyseal cones. Good and excellent results according to KSS were obtained in all patients, that corresponds to our findings. Authors also showed that custom-made implants provided more even load distribution upon the bone in comparison with standard cement or cementless prosthesis stems [4].

M.W. Tetreault et al. presented the data on survivability of 202 (134 tibial, 68 femoral) porous custom-made titanium metaphyseal cones in 139 patients. All patients had AORI types 2B and 3 metaphyseal defects of the femur and the tibia. Authors reported good clinical and radiological outcomes. Patients’ mean score according to KSS significantly increased from 50 (range 0-94) to 87 (range 72-94) points (р<0.001), and that corresponds to our study findings [18]. Evaluating postoperative results, PJI was noticed in 3 patients, one patient had periprosthetic fracture, and one – aseptic loosening of the tibial prosthetic component. Only one patient in our study developed complication (PJI). In our opinion, possible causes of that were three surgeries in his previous medical history (two of them – antibacterial spacer implantation concerning PJI), comorbidities (type II diabetes mellitus, rheumatoid arthritis, postphlebitic syndrome), muscular hypo- and atrophy, multiple hypertrophic scars at the surgical site.

A.A. Chernyi et al. present results of surgical treatment of 26 patients with 30 custom-made implants (12 femoral and 18 tibial) used during revision knee arthroplasty. Similar to our study, the authors reported no technical difficulties in positioning and implantation of custom-made titanium cones [17].

E.A. Remily et al. reported that 51 (98.1%) out of 52 implants had no radiological signs of prosthetic component loosening. Mean KSS scores were statistically significantly (р<0.001) higher comparing to preoperative ones (52.0 before the surgery; 80.4 after the surgery) [19]. Our study also revealed positive dynamics and increase of KSS scores in the postoperative period in comparison with preoperative values.

G. Piovan et al. presented in their study the results of using custom-made metaphyseal tibial cone with holes on its anterior surface that had allowed the surgeon to achieve precision fixation of the tibial tuberosity with screws when performing osteotomy during TKA [20]. However, patients in our study had no indications for such surgery. We suppose that this way of using custom-made implants can become further tendency towards 3D modelling of prosthetic components of the knee.

Limitations

This study has limitations due to a small sample. We consider it promising to study long-term results of surgical treatment of patients with vast bone defects (AORI types 2B and 3) of the proximal part of the tibia and/or distal part of the femur with the use of custom-made implants for revision knee arthroplasty and to perform the comparative analysis of these results in comparison with officinal implants.

CONCLUSION

All patients had significant improvement in SF-36, KSS, WOMAC and VAS scores in the postoperative period. X-rays of 23 out of 24 patients showed no prosthetic components’ loosening. The implants precisely matched the bone defects in all patients. Using custom-made implants produced by the means of additive technologies enables to preserve the lower extremity and its static and dynamic function in case of revision knee arthroplasty concerning vast bone tissue defects.

DISCLAIMERS

Author contribution

Zykin A.A. — study design, data collection and analysis, literature review, manuscript writing and editing.

Gerasimov S.A. — study design, manuscript editing.

Gorbatov R.O. — study concept, data collection and analysis, manuscript editing.

Illarionova T.V. — literature review, manuscript writing and editing, data statistical processing.

All authors have read and approved the final version of the manuscript of the article. All authors agree to bear responsibility for all aspects of the study to ensure proper consideration and resolution of all possible issues related to the correctness and reliability of any part of the work.

Funding source. State budgetary funding.

Competing interests. The authors declare that they have no competing interests.

Ethics approval. The study was approved by the local ethics committee of Privolzhsky Research Medical University, protocol No 6, 26.03.2021.

Consent for publication. Not required.
