Treatment of Extension Knee Contractures with Ilizarov Apparatus Versus Orthopedic Hexapod Ortho-SUV Frame

Cover Page


Cite item

Abstract

Background. In case if it is impossible to eliminate the knee contracture by soft tissue release, external fixation is additionally used. Most often, the Ilizarov apparatus with a uniaxial hinge is used for this purpose. Orthopedic hexapods, unlike the Ilizarov frame, are able to reproduce the kinematics of movements in the knee joint.

Aim of the study — to evaluate the effectiveness of orthopedic hexapod for the treatment of patients with knee extension contractures in comparison with the Ilizarov apparatus.

Methods. We analyzed 64 cases of combined treatment of extension knee contractures, which were divided into two groups. In the 1st group (31 patients) in addition to the soft tissue release, the orthopedic hexapod Ortho-SUV Frame (OSF) was used. In the 2nd group (33 patients) the Ilizarov apparatus with an uniaxial hinge was used. In a comparative analysis between groups, the number of flexion-extension cycles, the time required to complete them, and the time needed for complete knee range of motion (ROM) restoration were evaluated. Functional results were assessed using specialized scales-questionnaires KSS, Lysholm, LEFS in 2 days, 6 and 12 mon. after frame dismantling.

Results. Comparing the total external fixation period, as well as the time needed for ROM restoration, no significant difference between groups was found (р>0.05). When using the orthopedic hexapod, in comparison with the Ilizarov apparatus, fewer flexion-extension cycles were required. When assessing the amplitude of movements in 12 mon. in the first group, excellent results were found in 27 patients and good results in 4. In the second group, in all 33 patients good ROM was evaluated. On average, the ROM in the 1st group was 20º more than in the 2nd group. The knee function in 12 mon. was 16 points higher on the KSS in the 1st group, 5 points higher on the Lysholm scale, and 15 points higher on the LEFS scale than in the 2nd group. When analyzing the frequency of complications, no significant differences were found (р>0.05).

Conclusions. The results obtained indicate the effectiveness of the orthopedic hexapod in the treatment of patients with knee extension contractures.

Full Text

BACKGROUND

The formation of extensor contracture of the knee joint after a fracture of the femur has been registered in 20-38% of all relevant cases [1, 2, 3, 4]. The resulting restriction of flexion in the knee joint significantly impairs the quality-of-life of patients [5, 6, 7]. Quadricepsplasty, a soft tissue intervention aimed at eliminating scars and adhesions with the restoration of the sliding properties of the quadriceps muscle (QM) is the most commonly used surgery to eliminate extensor contractures [8, 9, 10, 11]. However, long-term contractures lead to persistent secondary changes in the soft tissues, their contraction, and partial cicatricial degeneration [12, 13]. In such cases, attempts at acute elimination of contracture to achieve the required range of motion (ROM) are deemed dangerous considering the possible damage to the QM tendon, avulsion fracture of the patella, or tibial tuberosity [14, 15, 16, 17]. To avoid these complications, the soft tissue stage of the surgery is generally supplemented with the use of an external fixation (ExFix), most often the Ilizarov apparatus [18, 19, 20, 21]. Moreover, a single-axis hinged mechanism not only enables the reproduction of the kinematics of movements in the knee joint [22, 23, 24]. However, this is possible when using an orthopedic hexapods [25, 26, 27, 28].

Based on these results, the present study aimed to evaluate the efficiency of an orthopedic hexapod for the treatment of patients with extensor contractures of the knee joint in comparison with the Ilizarov apparatus.

METHODS

Study design

A retro- and prospective cohort non-randomized study was performed.

Patients

All patients included in this study were treated at the Vreden National Medical Research Center of Traumatology and Orthopedics from 2003 to 2021. A total of 64 cases of combined (soft tissue release and ExFix ) treatment of the extensor contractures of the knee joint resulting from extra-articular fractures of the femur was analyzed in this study.

Group 1 (main) consisted of 31 patients who underwent treatment with the orthopedic hexapod Ortho-SUV for contracture, after the soft tissue stage of the surgery [29]. A total of 19 patients were analyzed retrospectively and 12 prospectively. Group 2 (comparison group) included 33 patients in whom the Ilizarov apparatus with a single-axis hinged system was employed after the soft tissue release. Both the groups were compared in terms of gender, age, fracture location, treatment method, duration of the contracture, and the preoperative range of motion (p ˃ 0.05) (Table 1).



Table 1. Characteristics of patients in the study groups (Me [Q25; Q75])

Indicator

Group 1 (Ortho-SUV)

Group 2 (Ilizarov apparatus)

Number of patients. n

31

33

Age. years

33 [18; 55]

35 [19; 57]

Gender, m/f

21 (67.8%) / 10 (32.2%)

20 (60.6%) /13 (39.9%)

Classification of fractures according AO/OTA:

32-

33-A2 and A3

10 (32.3%)

21 (67.7%)

14 (42.4%)

19 (57.6%)

Fracture treatment method

Conservative treatment

12 (38.7%)

14 (42.4%)

MOS plate

9 (29.0%)

7 (21.2%)

ExFix

4 (12.9%)

6 (18.1%)

BIOS

2 (6.5%)

4 (12.1%)

SO

4 (12.9%)

2 (6.1%)

Duration of the contracture

2 years

3 years

4 years

12 (38.7%)

15 (48.3%)

4 (12.9%)

15 (45.4%)

15 (45.4%)

3 (9.1%)

Range of movement before surgery. deg.

20 [15; 35]

30 [20; 35]

MOS — metal osteosynthesis; BIOS — blockable intramedullary osteosynthesis; SO — sequential osteosynthesis.



Unfortunately, it was not possible to detail the types and the groups of diaphyseal and the subgroups of extra-articular fractures that consequently led to the contracture.

Surgical technique

In both the groups, stage 1 was Thompson quadricepsplasty, as modified by S.B. Hanh et al. [30]. Through a linear incision along the anterolateral surface, access was made to the heads, the QM tendon, and the patella (Fig. 1 a). The joint cavity and the ligament of the patella were freed from adhesions from the fibrous Hoffa’s pad, after which the rectus femoris was mobilized along the entire length up to the upper third of the thigh. The intermediate muscle, as a rule, represents a hypotrophic cicatricial-degenerate cord, which is always excised. Only if, after the soft tissue stage of the surgery, the required ROM is not achieved (Fig. 1 b), that is, the main cause of the contracture is the QM retraction, applying ExFix frame to the knee joint was used.



Fig. 1. Soft tissue procedure: a — after soft tissue release; b — maximal flexion 65°



In both the groups, when applying ExFix, two supports on the femur (sector and ring) and one ring support on the lower leg were mounted. Bone components, wires, and threaded pins were inserted into the projections of the so-called “Recommended positions (RP)” [31].

The Ortho-SUV Frame (OSF) hexapod assembly, specially designed for the treatment of knee joint contractures, was adopted [32]. Its peculiarities involved the fact that the base ring was installed in the sagittal plane at an angle of 60° to the anatomical axis of the femur, while the mobile ring was mounted at an angle of 120° to the anatomical axis of the tibia. An additional “dummy” sector was used to fix the strut # 1 (Fig. 2 a).

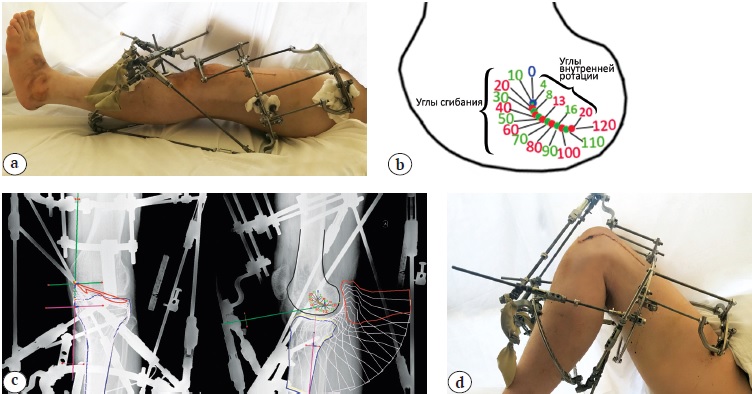

Fig. 2. Usage of Ortho-SUV Frame (OSF) hexapod: a — after frame applying; b — the template, in wich accordance the movements in the knee joint were modelled; c — OSF software window; d — maximal flexion achieved



On the next day of the surgery, an X-ray of the knee joint was performed in 2 projections. Using the Adobe Photoshop 2020 (Adobe Systems, Inc.), a specially designed template was superimposed on the lateral radiograph with marked instantaneous centers of rotation of the knee joint and the angles of rotation (Fig. 2 b). When calculating in the computer program SUV-Software v.7.2, a distraction of 5-7 mm was set, and the “multi total residual” software option was used to calculate the flexion up to an angle of 120° at intervals of 10° (Fig. 2 c). In addition, when calculating, the internal rotation of the tibia was added at flexion angles of 10°, 30°, 60°, 90°, and 120°. The flexion rate of 2.5° per day for 4 cycles was selected, as a result of which the program calculated the change in the strut length to provide 10° flexion in 4 days.

Distraction was started on days 3-7, followed by a period of passive-active development of movements. The passive-active development of movements included the cycles of passive flexion-extension of the lower leg using an orthopedic hexapod. Simultaneously, active exercises were started after the complete cycle 1 of passive flexion-extension with the use of an OSF orthopedic hexapod. To develop active movements, struts ## 2, 4, and 6 were temporarily detached from the mobile ring. Having fixed the struts again, the patients were recommended exercises that involved touching the tips of the toes with their fingers and lifting the weight of the lower limb, first with the help of a cable, and subsequently without it. Active exercises for the lower leg flexors were performed daily for 30-40 min at an interval of 5-6 h. The cycles were repeated until the amplitude of active movements in the knee joint reached an angle of 90°. The initial rate of flexion, depending on the pain syndrome, could be accelerated or slowed down. As a rule, the rate of flexion-extension for each subsequent cycle was greater than that of the previous one.

To prevent the rebound effect (decrease in the range of motion due to soft tissue retraction) in the postoperative period, upon reaching an active range of motion of 70-80º, the fixation of the knee joint for the night in the position of the maximum possible flexion and extension was alternated daily. The frame was dismantled after the patient could independently flex the knee joint to a 90° flexion angle.

In group 2 (Ilizarov apparatus), the frame assembly included base ring applied in distal third of the femur, while mobile ring was mounted in the proximal third of the lower leg. In the frontal plane, the rings were oriented perpendicular to the common mechanical axis. In the sagittal plane, the base and mobile rings were oriented perpendicular to the anatomical axes of the femur and tibia. The axial hinges were placed under the C-arm control in the projection of the flexion-extension axis of the knee joint [33]. Passive movements were performed using swivel hinge (“motor”) (Fig. 3).



Fig. 3. Usage of Ilizarov apparatus: a — after frame applying; b — X–ray during treatment; c — axial and swivel hinges; d — ring-to-ring collision



Postoperative management did not differ from that used for group 1. To perform active exercises, the axial hinges were disconnected.

After the frame dismantling, patients of both groups continued complex rehabilitation treatment that included exercise therapy, low-frequency magnetic therapy, massage, and mechanotherapy.

Comparison of results

In a comparative analysis between groups, the duration of the movement development period (MDP) using ExFix was evaluated, along with the number of flexion-extension cycles, the time spent on their implementation (cycle duration), and the range of motion in the joint. The final ROM was assessed as excellent at ≥110°, good at 90-109°, satisfactory at 60-89°, and unsatisfactory at ≤60°. The classification of Caton (1991) [34] was used to assess the relationship between complications and treatment outcomes. The KSS [35], Lysholm, and LEFS questionnaires were used to assess the function of the knee joint and the lower limb in general. The evaluation was performed at the stages before the surgery, on day 2 after the ExFix dismantling, and at 6 and 12 months after the ExFix frame dismantling. In 12 prospective patients from the main group, an additional assessment was performed at 3 and 9 months after the ExFix dismantling.

Statistical analysis

The data obtained were recorded in Microsoft Excel spreadsheets. Statistical data analysis was performed using the Statistica v.10 software. The analysis of the normality of distribution was performed using the Shapiro-Wilk test. The distribution of most of the studied numerical variables differed from the normal one; therefore, nonparametric methods of statistical analysis were applied. To assess the quantitative parameters in 2 independent groups, the Mann-Whitney U-test was used. As is customary when using nonparametric methods, quantitative data were presented as a median as well as lower and upper quartiles. To calculate the relationship between quantitative parameters, the Spearman correlation coefficient was adopted. The comparison of the frequency characteristics of nominal data was performed using the χ2 test (with the Yates correction for small cohorts) and Fisher’s test. The assessment of the dependent samples in the same group and the study of the indicators in dynamics after surgical treatment were performed using the Wilcoxon and Friedman criteria.

RESULTS

When comparing the period of development of movements and the period of use of ExFix in both the groups, no statistically significant difference was noted (p˃0.05) (Table 2).



Table 2. Time characteristics of both the study groups, days (Me [Q25; Q75])

Period

Group 1 (Ortho-SUV)

Group 2 (Ilizarov apparatus)

Latent

3 [2; 4]

3 [2; 3]

Distraction

4 [3; 4]

5 [4; 5]

Movement development

99 [91; 107]

110 [88; 119]

ExFix use period

108 [99; 120]

109 [98; 114]



In group 1, where the Ortho-SUV orthopedic hexapod was used, an active flexion angle of 90° was achieved in 5 (16.2%) cases in 4 cycles, 24 (77.4%) cases in 5 cycles, and 2 (6.4%) cases in 6 cycles. In group 2, in 12 (36.4%) cases, to achieve an active flexion angle of 90°, 6 cycles were required, and in 21 (63.6%) cases, 7 flexion-extension cycles were necessary (Table 3). When comparing the duration of cycles, a statistically significant difference was recorded in cycles 1, 2, and 3 (p≤0.05). According to Table 3, less time was spent on the first 3 cycles of group 2 than that of group 1. At the end of cycle 4, the average duration in both the groups became equal (p ˃ 0.05), while the average active range of motion in group 1 remained statistically significantly greater (p˂0.05) than that in group 2. At the end of cycle 5, the average time in group 1 was less (p˂0.05), and the average active range of motion was also statistically significantly greater than that in group 2 (p ˂ 0.05).



Table 3. Quantitative data of flexion-extension cycles in the study groups (Me [Q25; Q75])

Cycle number

Group 1 (Ortho-SUV)

Group 2 (Ilizarov apparatus)

p

n, %

CD, days

MAJ, deg.

n, %

CD, days

MAJ, deg.

CD, days

MAJ, deg.

1

31/100

39 [37; 41]

40 [25; 50]

33/100

32 [30; 34]

30 [20; 35]

˂0.05

˂0.05

2

31/100

28 [26; 30]

55 [45; 60]

33/100

25 [22; 26]

45 [40; 45]

˂0.05

˂0.05

3

31/100

19 [16; 23]

65 [55; 70]

33/100

17 [16; 18]

55 [50; 60]

˂0.05

˂0.05

4

31/100

11 [9; 13]

80 [70; 85]

33/100

11 [10; 13]

65 [60; 70]

˃0.05

˂0.05

5

24/77.4

4 [4; 5]

92 [90; 95]

33/100

7 [6; 8]

75 [75; 85]

˂0.05

˂0.05

6

2/6.4

2.5 [2; 3]

92 [90; 95]

33/100

5 [3; 7]

85 [85; 90]

7

21/63.6

3 [3; 4]

90 [90; 90]

n — number of patients; CD — cycle duration, days; MAJ — movement amplitude in the joint.



The maximum value of the achieved flexion angle when using the orthopedic hexapod on each cycle averaged 115° (110;115), which is 25° more than that in the comparison group, where the maximum flexion angle averaged 90° (90;90) (p˂0.05). The amplitudes of movements on day 2 and at 12 months after ExFix dismantling were statistically significantly less in the Ilizarov apparatus group (p˂0.05). At 12 months after ExFix dismantling, an excellent range of motion was recorded in group 1 in 27 (87.1%) patients and a good one in 4 (12.9%) cases. In group 2, in all 33 (100%) cases, the range of motion was assessed to be good (Table 4).



Table 4. Range of knee motion at various times, deg. (Me[Q25; Q75])

Follow-up period

Group 1 (Ortho-SUV)

Group 2 (Ilizarov apparatus)

p

Before surgery

20 [15; 35]

30 [20; 35]

˃0.05

After release

55 [50; 70]

60 [55; 70]

˃0.05

Before dismantling the ExFix

115 [110; 115]

90 [90; 90]

˂0.05

On the day 2 after dismantling

90 [90; 95]

90 [90; 90]

˂0.05

After 6 months

105 [100; 110]

95 [90; 95]

˂0.05

After 12 months

115 [110; 120]

95 [90; 95]

˂0.05



In group 1, the correlation analysis revealed a direct strong relationship between the maximum achieved frame-based flexion and the range of motion achieved after 12 months (p ˂ 0.05; r = 0.877). In group 2, a direct moderate relationship was noted (p ˂ 0.05; r = 0.715).

The mean scores on the KSS and Lysholm scales on day 2 after the frame dismantling were statistically significantly lower in group 2 (p˂0.05), while no significant difference was noted on the LEFS scale (p˃0.05). At 6 and 12 months after the frame dismantling, the mean scores on the KSS, Lysholm, and LEFS scales were statistically significantly lower in group 2 (p˂0.05) (Table 5).



Table 5. Results of assessment the knee function on scales, score (Me [Q25; Q75])

Follow-up period

KSS

Lysholm

LEFS

Group 1 (Ortho-SUV)

Group 2 (Ilizarov apparatus)

Group 1 (Ortho-SUV)

Group 2 (Ilizarov apparatus)

Group 1 (Ortho-SUV)

Group 2 (Ilizarov apparatus)

Before surgery

58 [48; 62]

60 [54; 63]

47 [44; 53]

50 [42; 55]

28 [24; 30]

27 [24; 31]

p˃0.05

p˃0.05

p˃0.05

On the day 2 after dismantling

74 [71; 76]

68 [67; 70]

81 [76; 81]

77 [75; 81]

50 [48; 54]

51 [47; 53]

p˂0.05

p˂0.05

p˃0.05

After 6 months

85 [82; 86]

78 [76; 81]

88 [88; 91]

86 [79; 86]

66 [64; 70]

58 [57; 61]

p˂0.05

p˂0.05

p˂0.05

After 12 months

95 [94; 97]

79 [77; 83]

95 [92; 99]

90 [86; 91]

74 [72; 75]

59 [58; 64]

p˂0.05

p˂0.05

p˂0.05



After 12 months in group 1 on the KSS scale, excellent results were recorded for all patients. In group 2, excellent results were registered in 10 (30.3%) patients and good results in 23 (69.7%) patients. According to the Lysholm scale, in group 1, an excellent function was noted in 29 (93.5%) cases and good function in 2 (6.4%) cases, while, in the group 2, excellent results were recorded in 9 (27.2%) patients and good results in 24 (72.8%) cases. According to the LEFS scale, in group 1, a slight limitation of the lower limb function was noted in all cases, and, in group 2, a similar result was noted in 15 (45.4%) patients, while a moderate limitation of function was noted in 18 (54.6%) cases.

Indicators of the dynamics of the average range of motion and the average score in prospective patients of group 1 are presented in Table 6. When assessing the dynamics of the average ROM in group 1, since the surgery, its increase and the achievement of excellent results were noted 9 months after the frame dismantling. When evaluating the dynamics of changes in the average scores on the KSS scale 6 months after the ExFix dismantling, excellent functions of the knee joint were noted. According to the Lysholm score, excellent functions of the knee joint were achieved 9 months after the frame removal. According to the LEFS scale, the limitation of the lower limb function was noted to be insignificant 6 months after the external device dismantling.



Table 6. Dynamics of changes in the average ROM amplitude and scores (Me [Q25; Q75])

Follow-up period

Amplitude of movements, deg.

KSS, score

Lysholm, score

LEFS, score

Before surgery

27.5 [17.5; 40.0]

58.0 [56.0; 62.0]

50.0 [45.5; 63.0]

28.0 [24.0; 29.5]

After release

55.0 [47.5; 67.5]

After dismantling the ExFix

95.0 [95.0; 95.0]

74.0 [72.0; 76.5]

79.0 [76.0; 81.0]

51.5 [47.5; 55.5]

After 3 months

100.0 [97.5; 102.5]

80.0 [79.5; 81.5]

84.5 [83.0; 86.0]

55.0 [58.0; 59.5]

After 6 months

110.0 [105.0; 112.0]

84.0 [82.5; 86.0]

91.0 [88.0; 91.0]

67.5 [62.5; 71.0]

After 9 months

115.0 [115.0; 120.0]

93.0 [92.0; 95.0]

97.0 [95.0; 99.0]

71.5 [70.5; 72.5]

After 12 months

115.0 [115.0; 125.0]

95.0 [95.0; 96.5]

99.0 [97.0; 99.0]

73.5 [72.5; 75.0]



In group 1, complications developed in 14 (45.1%) patients, 12 (38.7%) of whom showed superficial pin-site infection (category 1). In 1 (3.2%) female patient, limited skin necrosis occurred in the postoperative period (category 2); therefore, the development of movements was temporarily suspended for the debridement. After the secondary healing of the wound, the development was continued. In another (3.2%) patient, the development was suspended due to infection in the surgical area (category 2), which necessitated revision, sanitation, and drainage of the infectious focus. As a result, the purulent-inflammatory process was discontinued, while the development was continued.

In group 2, the complications were detected in 17 (51.4%) patients; 16 (48.4%) of whom experienced superficial pin-site infection (category 1), which was stopped through conservative treatment. In 1 (3%) case, a threaded pin breaching occurred due to a fall of the patient. This case required repeated bone component insertion (category 2), after which the development of movements was continued. A comparative analysis of complications in both the groups showed no statistically significant difference (p˃0.05).

DISCUSSION

Fractures of the femur were accompanied by varying degrees of damage to the intermediate head of the QM [11, 13]. The scar tissue formed as a result of damage, tightly soldered to the periosteal regenerate, prevented the QM sliding, and was one of the most significant causes of contracture [10]. It can be assumed that the more severe the type and group of a fracture, the more the QM is damaged. We deliberately excluded patients with intra-articular fractures (types 33-B and 33-C) from the study in order to exclude the influence of the “articular” component of contractures. Unfortunately, it was not possible to detail the types of fractures 32- and the subgroups of fractures 33-A2 and 33-A3, because, at the time of hospitalization, there were signs of complete consolidation of the fragments with bone tissue remodeling. Available extracts from case histories did not provide sufficient information. Therefore, based on the available data, we can only state that in both the groups, mostly, contracture occurred after extra-articular fractures in the supracondylar region (33-A2 and 33-A3 according to the AO/OTA classification) (see Table 1). The formation of knee joint stiffness in patients of both groups occurred more often after conservative treatment and plate osteosynthesis. This finding is consistent with the literature data. In the study by Mousavi et al., in 11 out of 27 treated patients (40.7%), extensor stiffness was preceded by a fracture in the diaphyseal portion, at the interface of the diaphysis and the supracondylar region in 6 (22.3%) cases and in the supracondylar region of the femur in 10 (37%) cases. In 13 (48%) cases, a simple type of fracture was noted, and, in 14 (51.9%) cases, a fragmentary type was registered. When mentioning past surgical interventions, the authors noted that the formation of contracture was preceded by plate osteosynthesis in 19 (70.3%), intramedullary osteosynthesis in 5 (18.5%), and external fixation in 2 (7.4%) patients [36].

In group 1 (orthopedic hexapod), the maximum passive flexion achieved with ExFix was, on an average, 25° greater than that in group 2 (Ilizarov apparatus) (see Table 4). Although the frame was dismantled after reaching 90° of active flexion, continued rehabilitation enabled the achievement of the same amplitude that was achieved in the ExFix device by month 9 after its dismantling (Table 6).

A comparison of the groups revealed that the maximum flexion in the frame did not exceed 90-95°, as, at these angles, the length of the threaded rod on the swivel hinge end. In the comparison group, the frame was also dismantled after reaching 90° of active flexion. However, despite the continuation of rehabilitation treatment, the ROM remained the same or exceeded it by ≤5°. After 12 months, the ROM in group 1 was, on an average 20°, greater than that in group 2. Thus, it can be assumed that the higher range of motion in group 1 was directly related to the higher maximum flexion value achieved in the frame.

When analyzing the literature, we did not find any studies on the use of an orthopedic hexapod for the treatment of the knee joint extensor contractures. For comparison, we could find only two papers that reported the treatment of extensor contracture using soft tissue release in addition to the use of the Ilizarov apparatus [21, 22].

Thus, Lee et al. reported the treatment of 10 patients with extensor contractures of the knee joint and found the preoperative range of motion in them averaged 25° (5-35°) [20]. As a result of the treatment, the average range of motion recorded by the authors in the last cases (without specifying the exact period of follow-up) was 93° (85-105°) [21]. The authors noted that the range of motion was the same as that at the time of dismantling the apparatus or higher in all patients, except one. The average values of the amplitude of movements obtained by the authors were similar to the present results in group 2 for 12 months after the frame dismantling.

Liu et al. reported a combination of soft tissue release with the use of the Ilizarov apparatus for the treatment of 36 patients with extension knee joints stiffness. The mean ROM before surgery was 13.8° (8-19°), after treatment, it was 102.9° (78-115°). On the other hand, the period for evaluating the result was not specified [21]. When compared with group 1 of our study, the indicator of the average range of motion was higher than that recorded by Liu et al., but, in group 2, the same indicator was lower. The higher performance noted by Liu et al. was probably associated with the use of special spring pusher hinges attached to the supports along the front side, which enabled the achievement of a larger flexion angle in the frame.

The analysis of the flexion-extension cycles showed that, in group 1, after each cycle, the amplitude of active movements was greater than that in group 2. At the same time, in group 2, less time was spent completing the first 3 cycles than that in group 2. To achieve an active ROM of 90° in group 1, fewer cycles were required than that in the comparison group. This is probably the reason why the mean values of the MDP and the ExFix period did not differ significantly.

The number of days of the flexion-extension cycles 1, 2, and 3 was significantly greater in group 1, as a greater flexion angle was achieved in the ExFix device, which needed more time. However, by cycle 4, this indicator equalized. It took less time to complete cycle 5 in group 1 than that in group 2. At the same time, 5 patients from group 1 after cycle 4 had already achieved the active flexion of 90°. The cycles 6 could not be compared due to the large difference in the number of patients (2 in group 1 and 33 in group 2). Six cycles were required for 2 patients from group 1 due to a temporary suspension of the development of movements from complications. In group 2, in 12 patients, the required amplitude was achieved after cycle 6. The remaining patients achieved an active flexion angle of 90° after cycle 7. When a larger flexion angle was reached in the frame, a greater stretching of the QM and hence a better function was achieved. This was probably the reason why it took fewer cycles in the main group to achieve active amplitude of 90°.

When compared with the data of both the groups of our study, Lee et al. employed ExFix for longer (average 125 days). At the same time, the authors did not provide any description of the flexion-extension cycles and the assessment on functional scales [20].

Liu et al. did not describe the aspects of the flexion-extension cycles, except for the mention that the amplitude of active movements of 60° was achieved on an average of 28.5 ± 4.3 days. These data indicated higher temporal and functional characteristics than the characteristics of cycle 1 of both the groups of our study. Meanwhile, it should be noted that the values of the amplitude achieved after the soft tissue stage of surgery by Liu et al. were higher than that in both the present study groups. Data on the period of use of the Ilizarov apparatus were not provided by the authors [21].

After the frame dismantling in both the groups, an increase in the mean scores on the KSS and Lysholm functional scales was noted, however, in group 2, the corresponding mean scores were significantly lower. Based on the results of filling in the KSS questionnaire by the patients themselves and the attending physician, the causes of the lower average score in group 2 were determined. The difference was mainly attributable to a smaller range of motion and the signs of overstretching of the capsular-ligamentous structures of the knee joint. The lower limb function according to the LEFS scale at the time of the ExFix device dismantling in both groups did not differ. However, after 6 and 12 months, the difference was significantly lower in group 2, probably owing to the causes mentioned earlier.

We obtained a higher complication rate in both the groups when compared to those reported by Lee et al., who recorded inflammation of the soft tissues around the wires and pins (complication category 1) in 2 (20%) of 10 patients. This difference can be attributed to insignificant statistics owing to the small number of cases.

CONCLUSIONS

The improvement of the knee joint ROM using an orthopedic hexapod enables the achievement of a greater angle of flexion and requires fewer flexion-extension cycles. However, a comparative analysis of the periods of movement development and the total ExFix time in both groups indicated that the hexapod had no significant advantages over the Ilizarov apparatus. The values of the parameters of the knee joint function when using the orthopedic hexapod were greater than those when using the Ilizarov apparatus, possibly due to the ability of the hexapod to provide a greater range of motion in accordance with its natural kinematics. The present results suggest that the use of an orthopedic hexapod to improve the knee joint ROM is an effective approach for the treatment of its extension stiffness, in terms of wide application of this technique in clinical practice.

DISCLAIMERS

Author contribution

Saigidula A. Rokhoev — the collection and processing of material, analysis and statistical processing of data, data statistical processing, manuscript writing.

Dmitrii V. Chugaev — the collection and processing of material, analysis and statistical processing of data.

Leonid N. Solomin — study coordination, research conception and design, text editing.

All authors have read and approved the final version of the manuscript of the article. All authors agree to bear responsibility for all aspects of the study to ensure proper consideration and resolution of all possible issues related to the correctness and reliability of any part of the work.

Funding source. This study was not supported by any external sources of funding.

Competing interests. The authors declare that they have no competing interests.

Ethics approval. Not applicable.

Consent for publication. Written consent was obtained from the patients for publication of relevant medical information and all of accompanying images within the manuscript.

×

About the authors

Saigidula A. Rokhoev

Vreden National Medical Research Center of Traumatology and Orthopedics

Author for correspondence.
Email: 09saga@mail.ru
ORCID iD: 0000-0003-4369-9619

аспирант, врач травматолог-ортопед

Russian Federation, 8, Akademika Baykova str., St. Petersburg, 195427

Dmitrii V. Chugaev

Vreden National Medical Research Center of Traumatology and Orthopedics

Email: dr.chugaev@gmail.com
ORCID iD: 0000-0001-5127-5088

Cand. Sci. (Med.)

Russian Federation, 8, Akademika Baykova str., St. Petersburg, 195427

Leonid N. Solomin

Vreden National Medical Research Center of Traumatology and Orthopedics

Email: solomin.leonid@gmail.com
ORCID iD: 0000-0003-3705-3280

Dr. Sci. (Med.), Professor

Russian Federation, 8, Akademika Baykova str., St. Petersburg, 195427

References

  1. Апагуни А.Э. Ошибки и осложнения оперативного лечения диафизарных переломов бедренной кости. Травматология и ортопедия России. 2005;(1):38-39. Apaguni A.Je. [Mistakes and complications of surgical treatment of diaphyseal fractures of the femur]. Travmatologiya i ortopediya Rossii [Traumatology and Ortopedics of Russia]. 2005;(1):38-39. (In Russian).
  2. Gomes J.L., Ruthner R.P., Moreira L. Femoral pseudoarthrosis and knee stiffness: long-term results of a one-stage surgical approach. Arch Orthop Trauma Surg. 2010;130(2):277-283. doi: 10.1007/s00402-009-0938-1.
  3. Гримайло Н.С. Алгоритм оперативного лечения переломов дистального отдела бедренной кости. Научные ведомости Белгородского государственного университета. Серия: Медицина. Фармация. 2013;23(18(161)):45-48. Grimailo N.S. [Algorithm of operative treatment of distal femur fractures]. Nauchnye vedomosti Belgorodskogo gosudarstvennogo universiteta. Seriya: Meditsina. Farmatsiya []. 2013;23(18(161)):45-48 (In Russian).
  4. Razaq M.N.U., Muhammad T., Ahmed A., Adeel, Ahmad S., Ahmad S., Sultan S. Outcomes Of Distal Femur Fracture Treated With Dynamic Condylar Screw. J Ayub Med Coll Abbottabad. 2016;28(2):259-261.
  5. Fitzsimmons S.E., Vazquez E.A., Bronson M.J. How to treat the stiff total knee arthroplasty?: a systematic review. Clin Orthop Relat Res. 2010;468(4):1096-1106. doi: 10.1007/s11999-010-1230-y.
  6. Attias M., Chevalley O., Bonnefoy-Mazure A., De Coulon G., Cheze L., Armand S. Effects of contracture on gait kinematics: A systematic review. Clin Biomech (Bristol, Avon). 2016;33:103-110. doi: 10.1016/j.clinbiomech.2016.02.017.
  7. Ding B.T.K., Khan S.A. The judet quadricepsplasty for elderly traumatic knee extension contracture: a case report and review of the literature. Biomedicine (Taipei). 2019;9(3):21. doi: 10.1051/bmdcn/2019090321.
  8. Ebrahimzadeh M.H., Birjandi-Nejad A., Ghorbani S., Khorasani M.R. A modified Thompson quadricepsplasty for extension contracture resulting from femoral and periarticular knee fractures. J Trauma. 2010;68(6):1471-1475. doi: 10.1097/TA.0b013e3181bdcdec.
  9. Oliveira V.G., D’Elia L.F., Tirico L.E., Gobbi R.G., Pecora J.R., Camanho G.L. et al. Judet quadricepsplasty in the treatment of posttraumatic knee rigidity: long-term outcomes of 45 cases. J Trauma Acute Care Surg. 2012;72(2):E77-80. doi: 10.1097/ta.0b013e3182159e0a.
  10. Pujol N., Boisrenoult P., Beaufils P. Post-traumatic knee stiffness: surgical techniques. Orthop Traumatol Surg Res. 2015;101(1 Suppl):S179-186. doi: 10.1016/j.otsr.2014.06.026.
  11. Persico F., Vargas O., Fletscher G., Zuluaga M. Treatment of extraarticular knee extension contracture secondary to prolonged external fixation by a modified Judet quadricepsplasty technique. Strategies Trauma Limb Reconstr. 2018;13(1):19-24. doi: 10.1007/s11751-017-0302-x.
  12. Ирисметов М.Э. Хирургическое лечение стойких разгибательных контрактур коленного сустава. Ортопедия, травматология и протезирование. 2010;(3):31-34. Irismetov M.E. [Surgical treatment of persistent extension contractures of the knee joint]. Ortopediya, Travmatologiya i Protezirovanie [Orthopaedics, Traumatology and Prosthetics]. 2010;(3):31-34. (In Russian).
  13. Барков А.В., Барков А.А. Способ капсулопластики при устранении стойких разгибательных контрактур коленного сустава. Ортопедия, травматология и протезирование. 2013;(2):25-27. Barkov A.V., Barkov A.A. [Method of capsuloplasty in the elimination of persistent extensor contractures of the knee joint]. Ortopediya, Travmatologiya i Protezirovanie. [Orthopaedics, Traumatology and Prosthetics]. 2013;(2):25-27. (In Russian).
  14. Kundu Z., Sangwan S., Guliani G., Siwach R., Kamboj P., Singh R. Thompson’s quadricepsplasty for stiff knee. Indian J Orthop. 2007;41(4):390-394. doi: 10.4103/0019-5413.37004.
  15. Hahn S.B., Choi Y.R., Kang H.J., Lee S.H. Prognostic factors and long-term outcomes following a modified Thompson’s quadricepsplasty for severely stiff knees. J Bone Joint Surg Br. 2010;92(2):217-221. doi: 10.1302/0301-620X.92B2.22936.
  16. Mousavi H., Mir B., Safaei A. Evaluation of Thompson’s quadricepsplasty results in patients with knee stiffness resulted from femoral fracture. J Res Med Sci. 2017;22:50. doi: 10.4103/1735-1995.205237.
  17. Khan L., Ahmad S., Qadir I., Zaman A. U., Aziz A. Functional outcome of judet’s quadriceptoplasty in posttraumatic stiff knees. Prof Med J. 2021;28(12):1783-1787. doi: 10.29309/TPMJ/2021.28.12.3938.
  18. Плаксейчук Ю.А., Салихов Р.З., Соловьев В.В. Опыт применения дистракционных аппаратов в хирургическом лечении спастических контрактур коленного сустава. Практическая медицина. 2014;2(4);115-117. Plakseichuk Ju.A., Salihov R.Z., Solov’ev V.V. [Experience in the use of distraction devices in the surgical treatment of spastic contractures of the knee joint]. Prakticheskaya meditsina [Practical Medicine]. 2014;2(4);115-117. (In Russian).
  19. Tuncay İ., Solomin L. Joint contracture management with external fixators. In: Advanced Techniques in Limb Reconstruction Surgery. Springer-Verlag: Springer Berlin Heidelberg; 2015. p. 191-221. doi: 10.1007/978-3-642-55026-3_11.
  20. Lee D.H., Kim T.H., Jung S.J., Cha E.J., Bin S.I. Modified judet quadricepsplasty and Ilizarov frame application for stiff knee after femur fractures. J Orthop Trauma. 2010;24(11):709-715. doi: 10.1097/BOT.0b013e3181c80bb9.
  21. Liu Y., Shi P., Li J., Li H., Dong S. Treatment of traumatic knee stiffness with Ilizarov stretcher. Res Square. (Preprint). Available from: https://www.researchsquare.com/article/rs-21353/v1. doi: 10.21203/rs.3.rs-21353/v1.
  22. Sommers M.B., Fitzpatrick D.C., Kahn K.M., Marsh J.L., Bottlang M. Hinged external fixation of the knee: intrinsic factors influencing passive joint motion. J Orthop Trauma. 2004;18(3):163-169. doi: 10.1097/00005131-200403000-00007.
  23. Postolka B., Schütz P., Fucentese S.F., Freeman M.A.R., Pinskerova V., List R. et al. Tibio-femoral kinematics of the healthy knee joint throughout complete cycles of gait activities. J Biomech. 2020;110:109915. doi: 10.1016/j.jbiomech.2020.109915.
  24. Coles L.G., Gheduzzi S., Miles A.W., Gill H.S. Kinematics of the natural and replaced knee. In: Total Knee Arthroplasty. Ed. by E.C. Rodríguez-Merchán, S. Oussedik. London: Springer; 2015. p. 7-19.
  25. Соломин Л.Н., Корчагин К.Л., Утехин А.И. Разработка оптимальной компоновки аппарата Орто-СУВ для разработки движений в коленном суставе. Травматология и ортопедия России. 2009;4(54):21-26. Solomin L.N, Korchagin K.L, Utekhin A.I. [Investigation of the Ortho-SUV frame optimal assembly for working out motions in the knee joint]. Travmatologiya i ortopediya Rossii [Traumatology and Orthopedics of Russia]. 2009;4(54):21-26. (In Russian).
  26. Massobrio M., Mora R. Hexapod External Fixator Systems: Principles and Current Practice in Orthopaedic Surgery. Rome: Springer Nature; 2021. 313 p.
  27. Рохоев С.А., Соломин Л.Н. Использование метода чрескостного остеосинтеза при лечении контрактур коленного сустава у взрослых пациентов: обзор литературы. Травматология и ортопедия России. 2021;27(1): 185-197. doi: 10.21823/2311-2905-2021-27-1-185-197. Rokhoev S.A., Solomin L.N. [Usage of the method of external fixation in the treatment of adult patients with knee joint stiffness: literature review]. Travmatologiya i ortopediya Rossii [Traumatology and Orthopedics of Russia]. 2021;27(1):185-197. doi: 10.21823/2311-2905-2021-27-1-185-197. (In Russian).
  28. Solomin L.N. Hexapod External Fixators in Articular Stiffness Treatment. In: Hexapod External Fixator Systems. Ed. by Massobrio M., Mora R. Springer, Cham; 2021. р. 199-238. doi: 10.1007/978-3-030-40667-7_10.
  29. Соломин Л.Н., Утехин А.И., Виленский В.А. Орто-СУВ аппарат: чрескостный аппарат, работа которого основана на компьютерной навигации. Гений ортопедии. 2011;(2):148-156. Solomin L.N., Vilenskiy V.A., Utekhin A.I. [Ortho-SUV frame: external fixator working on the basis of computer navigation]. Genij Ortopedii. 2011;(2):161-169. (In Russian).
  30. Hahn S.B., Lee W.S., Han D.Y. A modified Thompson quadricepsplasty for the stiff knee. J Bone Joint Surg Br. 2000;82(7):992-995. doi: 10.1302/0301-620x.82b7.10590.
  31. Соломин Л.Н. Метод унифицированного обозначения чрескостного остеосинтеза. В кн.: Основы чрескостного остеосинтеза. Под. ред. Л.Н. Соломина. Москва: БИНОМ; 2014. Т.1. С. 45-55. Solomin L.N. [Method of Unified Designation of External Fixation]. In: Osnovy chreskostnogo osteosinteza [The Basic Principles of External Skeletal Fixation]. Ed. by L.N. Solomin. Moscow: BINOM; 2014. Vol.1. p. 45-55. (In Russian).
  32. Рохоев С.А., Соломин Л.Н., Старчик Д.А., Демин А.С. Усовершенствование компоновок ортопедического гексапода Орто-СУВ, используемых для лечения пациентов с контрактурами коленного сустава (экспериментальное исследование). Современные проблемы науки и образования. 2022;(2):12. doi: 10.17513/spno.31521. Режим доступа: https://science-education.ru/ru/article/view?id=31521. Rokhoev S.A., Solomin L.N., Starchik D.A., Demin A.S. [Improvement of the Ortho-SUV orthopedic hexapod arrangements used for the treatment of patients with knee joint stiffness (experimental study)] Sovremennye problemy nauki i obrazovaniya [Modern Problems of Science and Education]. 2022;(2):12. doi: 10.17513/spno.31521. Available from: https://science-education.ru/ru/article/view?id=31521. (In Russian).
  33. Hollister A.M., Jatana S., Singh A.K., Sullivan W.W., Lupichuk A.G. The axes of rotation of the knee. Clin Orthop Relat Res. 1993;(290):259-268.
  34. Caton J. Traitement des inégalités de longueur des membres inférieurs et des sujets de petite taille chez l’enfant et l’adolescent. Rev Chir Orthop. 1991;77 (Suppl. I):31-80.
  35. Kettelkamp D.B., Chao E.Y. A method for quantitative analysis of medial and lateral compression forces at the knee during standing. Clin Orthop Relat Res. 1972;83: 202-213. doi: 10.1097/00003086-197203000-00037.
  36. Mousavi H., Mir B., Safaei A. Evaluation of Thompson’s quadricepsplasty results in patients with knee stiffness resulted from femoral fracture. J Res Med Sci. 2017;22:50. doi: 10.4103/1735-1995.205237.

Supplementary files

Supplementary Files
Action
1. Fig. 1. Soft tissue procedure: a — after soft tissue release; b — maximal flexion 65°

Download (57KB)
2. Fig. 2. Usage of Ortho-SUV Frame (OSF) hexapod: a — after frame applying; b — the template, in wich accordance the movements in the knee joint were modelled; c — OSF software window; d — maximal flexion achieved

Download (97KB)
3. Fig. 3. Usage of Ilizarov apparatus: a — after frame applying; b — X-ray during treatment; c — axial and swivel hinges; d — ring-to-ring collision

Download (92KB)

Copyright (c) 2022 Rokhoev S.A., Chugaev D.V., Solomin L.N.

Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License.

СМИ зарегистрировано Федеральной службой по надзору в сфере связи, информационных технологий и массовых коммуникаций (Роскомнадзор).
Регистрационный номер и дата принятия решения о регистрации СМИ: серия ПИ № ФС 77 - 82474 от 10.12.2021.


This website uses cookies

You consent to our cookies if you continue to use our website.

About Cookies
