Impact of Zweymüller Stem Modification on Clinical and Radiological Outcomes

Full Text

BACKGROUND

One of the trends in modern arthroplasty is the increasing frequency of using non-cemented implants in hip replacement, which is confirmed by the data of numerous arthroplasty registers^1-6 and scientific publications [1, 2, 3, 4, 5]. On the one hand, this is due to the fact that existing non-cemented prostheses show similar or even better survival results than cemented ones [4, 6, 7, 8]. On the other hand, the use of cemented implants, despite their relative cheapness, is associated with an increase in the surgery duration, which levels their economic attractiveness [6, 9].

Nowadays, there is a huge number of non-cemented femoral stems of different geometry, which, due to their design features, transfer the load to the underlying bone in different ways, leading to formation of specific adaptive remodeling response [10, 11]. In some cases, the normal process of adaptive bone remodeling becomes negative, and leads to bone weakening and implant loosening [10, 12].

Analysis of hip arthroplasty register of the Vreden National Medical Research Center of Traumatology and Orthopedics has revealed a tendency towards gradual decrease in the proportion of straight wedge-shaped stems with a rectangular cross-section compared to proximally curved wedge-shaped stems fully coated with hydroxyapatite. In particular, the most commonly used Zweymüller (Alloclassic) femoral stems have become five and a half times less frequently used, with their share decreasing from 42.4% of all non-cemented stems in 2007 to 7.7% in 2018-2020. At the same time, the SL-PLUS MIA modification of this stem was used in only 0.8% of cases in 2014 (at the beginning of use) and in 2018-2020 - in 14,0% [5].

Aims of the study: 1) to determine the influence of changes in the design of the Zweуmüller-type femoral stem on midterm and long-term outcomes and its survival; 2) to identify the characteristics of adaptive remodeling of periprosthetic bone tissue around these femoral stems; 3) to determine risk factors for aseptic loosening of these femoral stems.

METHODS

Hip arthroplasty register database contained 1580 cases of primary arthroplasty using two Zweymüller stem models: Alloclassic (Zimmer-Biomet) and SL-PLUS MIA (Smith+Nephew). Of these, only 779 observations had both pre- and postoperative X-rays. Of these cases, some observations were lost to complete analysis: 9 patients (11 observations) had died by the time of the study, and 269 patients (276 cases of hip arthroplasty) could not be contacted. Therefore, assessment of functional results and analysis of X-rays in dynamics were performed in 492 (63.2%) observations out of 779 at a mean time of 78.1 months (IQR 36.0-132.0; Me = 60.0: 12.0 to 180.0) (Fig. 1). Patients were operated by different surgical teams using different approaches and were divided into two groups according to the type of the stem.

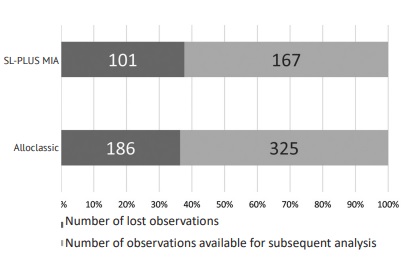

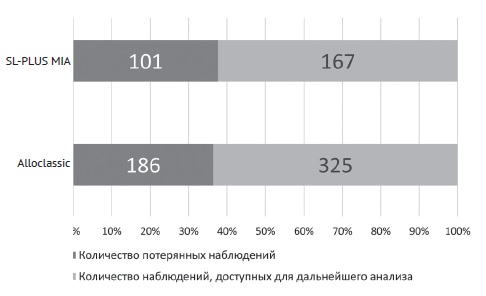

Fig. 1. Distribution of observations by the type of femoral stem



Alloclassic stem was used in 37.3% of cases in men and 62.7% of cases in women, whereas SL-PLUS MIA stem was used in 25.3% of cases in men and 74.7% of cases in women (p = 0.012).

There was also a statistically significant difference in the frequency of stem use in complex cases of primary hip arthroplasty: Alloclassic stems were used in 80.3% of complex cases and 19.7% in standard cases, while SL-PLUS MIA stems were used in 93.2% and 6.8%, respectively (p<0.001) (Tab. 1).

Follow-up period was statistically significantly longer when Alloclassic stems were used (p<0.001). Patients operated with SL-PLUS MIA stems had a follow-up period of 37.6 months (IQR 24.0-48.0: Me = 36.0: 12.0 to 84.0), while patients operated with Alloclassic stems had a follow-up period of 99.4 months (IQR 60.0 to 144.0; Me = 96.0: 24.0 to 180).

Clinical outcomes of hip arthroplasty were assessed according to the Harris Hip Score (HHS), the Oxford Hip Score (OHS) and the satisfaction index on a 10-point scale. Pain syndrome intensity was assessed by 10-point VAS.

To achieve the goals, we processed and analyzed X-rays of all patients before and after surgery using the "mediCAD® Classic" software (Sante Medical Systems, Russia).

The following quantitative parameters were measured on preoperative and postoperative pelvic X-rays:

Qualitative X-ray parameters were also evaluated:

Statistical analysis

Statistical calculations were performed using the SPSS Statistic v. 26 (IBM) software. Methods of descriptive statistics were used. Taking into account the non-normal data distribution, in addition to mean values, the median (Me) was used to measure the central tendency for the studied parameters, and the lower (Q1) and upper (Q3) quartiles (25-75% IQR) were used as measures of dispersion. Minimum and maximum values in the data series were also indicated. Quantitative parameters in groups and subgroups were compared using the Mann-Whitney U-test, and for multiple comparisons the method of single-factor analysis of variance (ANOVA test) was used. Comparison of the frequency characteristics of the parameters was performed using the nonparametric chi-square test, in case of a small number of observations with the Yates correction. Prediction methods were used for a number of parameters — calculation of odds ratios (OR). Survival rates for each type of the stem were determined using the Kaplan-Meier method.

RESULTS

Number of revisions and time of surgery

Twenty-eight out of 492 observations (64.1% of 779 observations included in the study) were performed between 2007 and 2020, representing 5.7% with an overall mean follow-up period of 7.7 years (IQR 3.5-11.5; Me = 7.5: 1.0 to 14.0). There were 23 revisions in the Alloclassic group (mean follow-up period was 93.3 months (IQR 36.0-132.0; Me = 108.0: 12.0 to 156.0), and 5 cases were noted in the SL-PLUS MIA group (mean follow-up period was 31.2 months (IQR 12.0-54.0; Me = 24.0: 12.0 to 60.0). Despite the higher number of revisions in the group of patients with the Alloclassic stem, this difference was not statistically significant (p = 0.095) (Table 2). The 10-year Kaplan-Meier prosthesis survival rate with the endpoint "revision for any reason" was 92.8% (Fig. 2).

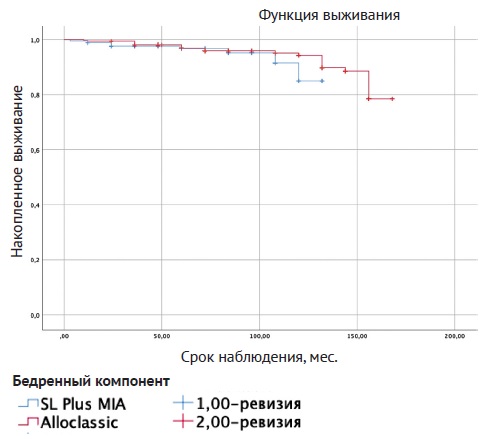

Fig. 2. Survival of endoprostheses according to the Kaplan-Meier method



Table 1. Distribution of observations by etiologic diagnosis, n (%)

Etiologic diagnosis		Alloclassic	SL-PLUS MIA	Total
Standard cases of arthroplasty	PHOA	105 (20.5)	16 (5.9)	121 (15.5)
	AONFH	20 (3.9)	10 (3.7)	30 (3.8)
	PFF	4 (0.7)	0 (0)	4 (0.5)
	Total	129 (25.1)	26 (9.6)	155 (19.8)
Complex cases of arthroplasty	DHOA	283 (55.3)	189 (70.5)	472 (60.6)
	Arthritis	25 (4.8)	12 (4.4)	37 (4.7)
	PTHOA	67 (13.1)	29 (10.8)	96 (12.3)
	Ankylosis	7 (1.7)	12 (4.7)	19 (2.6)
	Total	382 (74.9)	242 (90.4)	624 (80.2)
Total		511 (100)	268 (100)	779 (100)

PHOA — primary hip osteoarthritis; AONFH — aseptic osteonecrosis of the femoral head; PFF — proximal femur fracture; DHOA — dysplastic hip osteoarthritis; PTHOA — post traumatic hip osteoarthritis.



Given the difference in the follow-up periods, the structure of reasons for revision differed between the patient groups (Table 2). When using the SL-PLUS MIA stem, there were no revisions associated with aseptic loosening of the components, and aseptic loosening of the Alloclassic stem was noted in 6 (1.8%) cases.



Table 2. Reasons for revision in groups with different stems

Cause of revision	Alloclassic (n = 325)	SL-PLUS MIA (n = 167)	Всего (n = 492)
FS aseptic loosening	6 (1.8)	0 (0)	6 (1.2)
AC aseptic loosening	4 (1.2)	0 (0)	4 (0.8)
Prosthesis dislocation	5 (1.5)	2 (1.2)	7 (1.4)
Infection	6 (1.8)	1 (0.6)	7 (1.4)
Periprosthetic fracture	0 (0)	0 (0)	0 (0)
Muscle weakness	1 (0.3)	1 (0.6)	1 (0.2)
Pain syndrome	1 (0.3)	1 (0.6)	1 (0.2)
Total	23 (7.1)	5 (3.0)	28 (5.7)

FS – femoral stem; AC — acetabular component.



Functional state of patients

The vast majority of patients had a significant improvement in hip function after surgery, expressed in an increase of the HHS compared to the preoperative level. Preoperatively, the mean HHS was 42.0 points (IQR 36.0-46.0; Me = 43.0: 24.0 to 67.0), and after surgery - 93.1 points (IQR 91.5-96.0; Me = 94.0: 72.0 to 98.0) (Fig. 3).

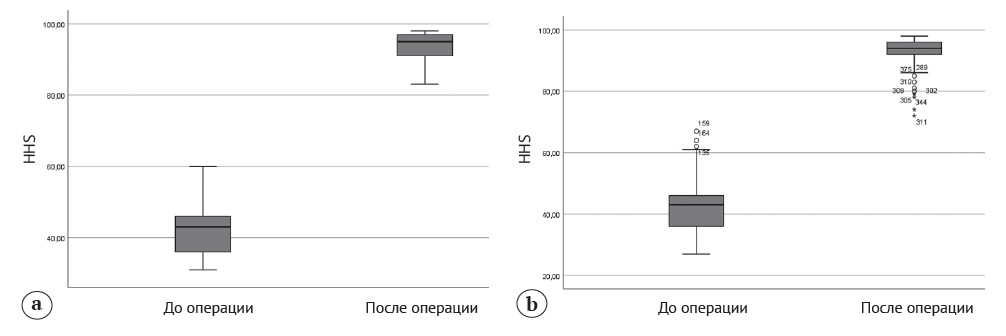

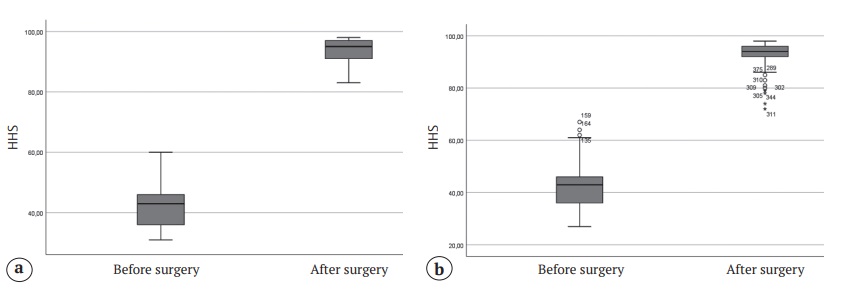

Fig. 3. Average score on the HHS before and after surgery: a — Alloclassic; b — SL-PLUS MIA



Patients with the Alloclassic stems had a mean HHS of 93.1 (IQR 92.0-96.0; Me 94.0: 72.0 to 98.0) and those with the SL-PLUS MIA stems had a mean HHS of 93.3 (IQR 91.0-97.0; Me = 95.0 (72.0 to 98.0; p = 0.001).

Distribution of the OHS was similar: patients operated with the Alloclassic femoral stem had a mean score of 44.7 (IQR 43.0-47.0; Me = 46.0: 36.0 to 48.0), and patients with the SL-PLUS MIA femoral stem had a mean score of 44.3 (IQR 42.0-47.0; Me = 46.0: 35.0 to 48.0; p<0.001).

Despite statistically significant differences in functional scale scores, there was no significant difference in clinical outcomes. A high level of patient satisfaction index was obtained in both groups with no statistically significant difference between the groups (p = 0.059). Patients operated with the use of the Alloclassic femoral stem had a mean satisfaction index of 9.0 (IQR 8.0-10.0; Me = 10.0: 4.0 to 10.0) and with the use of the SL-PLUS MIA - 8.6 (IQR 8.0-10.0; Me = 9.0:3.0 to 10.0). The mean VAS pain score of the patients with the Alloclassic femoral stem was 1.0 points (IQR 0.0-2.0; Me = 0: 0 to 8.0) and that of the patients with the SL-PLUS MIA stems was 1.6 points (IQR 0.0-2.0; Me = 1.0: 0 to 8.0; p = 0.404).

X-ray signs of adaptive bone tissue remodeling around femoral stems

During the studied period of observation when Alloclassic femoral stem was used in 108 (33.2%) cases, hypertrophy of the cortical layer was detected in the Gruen zones 2-6. The most pronounced changes were observed in the zones 3 and 5. Pedestal formation in the distal part of the stem was observed in 101 (30.1%) cases. When the SL-PLUS MIA stem was used, hypertrophy of the cortical layer around the implant was observed only in 24 (14.3%) cases, and the pedestal was formed only in 28 (16.7%) cases. However, this discrepancy may be accounted for the differences in the follow-up time, as the degree of adaptive remodeling of the bone around the prosthetic stem became more distinct over time (Pearson's positive correlation R = 0.470; p<0.001).

At the long-term follow-up, rather significant stress shielding (3-4 degrees) was detected in 39 cases. The third degree was detected in 27 cases out of 325 (8.3%) in patients with the Alloclassic stems (mean follow-up period 74.4 months (IQR 63.0-97.0), in patients with the SL-PLUS MIA stems — in 2 cases out of 167 (1.2%) (mean follow-up period 55.5 months). In other 10 (3.1%) observations, grade 4 stress shielding was noted when the Alloclassic stems were used (Fig. 4, 5).



Fig. 4. A 66-year-old patient in 2008 underwent left THA for primary idiopathic hip arthritis. The canal fill index in the 1^st zone was 0.63, and in the 2^nd and 3^rd zones, it was 1.0 (a). At the time of the survey, the patient’s satisfaction was 10 points, and VAS pain score was 0. X-rays taken 13 years later show signs of stress shielding syndrome of the 4th degree, characterized by thinning of the inner and outer cortical layers to the femoral diaphysis (b).

X-rays also reveal areas of osteolysis in the proximal part of the femur, especially clear up to the level of the lesser trochanter, and osteolysis areas in the screw region in the retroacetabular zone, as well as heterotopic ossification in the area of the greater trochanter (Brooker 1-2). The enlarged X-ray visualizes bone loss (atrophy) without clear boundaries, while preserving the trabecular structure, especially at the border with the implant. The bone in this case does not exhibit focal deformations typically seen in osteolytic changes. This is because the mechanism of bone loss is related stress bypass in the distal direction, consequently resulting in reduced loading bone in the proximal regions (c)



Fig. 5. A 40-year-old patient in 2014 underwent left THA for dysplastic hip arthritis, with a canal fill index of 0.63 in the 1st zone, 0.79 in the 2nd zone, and 1.0 in the 3rd zone (a). At the time of the survey, the patient was satisfied with 10 points, and VAS pain score was 0. X-rays taken 6 years later show signs of stress shielding syndrome of the 3rd degree, characterized by thinning of the inner cortical layer below the level of the lesser trochanter (b)



In these cases, the mean follow-up period was 117.0 months (IQR 96.0-138.0). No significant bone remodeling was observed in our study when using the SL-PLUS MIA femoral stem, probably due to considerably shorter follow-up periods (Table 3).



Table 3. Severity of stress-shielding syndrome depending on the femoral stem and its position

Femoral stem	Position in the canal	Severity of stress-shielding syndrome					Total
		0	1	2	3	4
Alloclassic	Varus	9	55	20	8	3	95
	Neutral	12	108	17	12	7	156
	Valgus	8	47	12	7	0	74
	Total	29	210	49	27	10	325
SL-PLUS MIA	Varus	6	31	12	0	0	49
	Neutral	10	48	20	2	0	78
	Valgus	5	23	12	0	0	40
	Total	21	102	42	2	0	167
Total		50	312	91	29	10	492
Follow-up period, mos.		17.2	28.1	65.7	95.9	103.1



The time since surgery was the most significant factor in the development of stress-shielding syndrome. Odds ratio for detecting grade 2-4 stress-shielding syndrome at follow-up of 48 months or more was OR 5.662 (95% CI: 3.171-10.113; p<0.001). However, there are other factors, including anatomical features of the femur and technical details of the femoral stem implantation. A funnel-shaped canal (Dorr type A) has been found to be a risk factor for the development of more pronounced stress-shielding syndrome (grades 2-4). Correlation between the canal type and the severity of stress-shielding syndrome is demonstrated using the chi-square test. Chi-square value is 55.853, which indicates a highly statistically significant correlation (p<0.001) (Table 4).



Table 4. Severity of stress-shielding syndrome depending on the Dorr index

Femoral stem	Dorr type	Severity of stress-shielding syndrome					Total
		0	1	2	3	4
Alloclassic	Dorr A	1	65	28	17	6	117
	Dorr B	10	126	20	8	4	168
	Dorr C	18	19	1	2	0	40
	Total	29	210	49	27	10	325
SL-PLUS MIA	Dorr A	3	23	26	2	0	54
	Dorr B	6	70	15	0	0	91
	Dorr C	12	9	1	0	0	22
	Total	21	102	42	2	0	167
Total		50	312	91	29	10	492



Another factor affecting the development of stress-shielding syndrome is the way the femoral stem fills the canal. Tighter fit in the distal third of the stem is a risk factor for the development of more severe stress-shielding syndrome. If the canal filling index with Zweymüller stems (Alloclassic and SL-PLUS MIA) is greater than the mean value for the respective component type, the risk of grade 2-4 stress-shielding syndrome is higher than that with a filling index less than the mean value (OR = 3.166; 95% CI: 2.02-4.96; p<0.001) (Table 5).



Table 5. Localization of stress-shielding syndrome depending on the degree of canal filling at different levels

Femoral stem	Zone	Degree of canal filling	Severity of stress-shielding syndrome					Total
			0	1	2	3	4
Alloclassic	1	<0.6	6	36	11	14	6	73
		≥0.6	23	174	38	13	4	252
	2	<0.79	19	99	29	11	2	160
		≥0.79	10	111	20	16	8	165
	3	<0.92	32	91	13	4	0	140
		≥0.92	7	109	36	23	10	185
SL-PLUS MIA	1	<0.6	4	36	7	2	0	49
		≥0.6	17	66	35	0	0	118
	2	<0.79	12	65	20	2	0	99
		≥0.79	9	37	22	0	0	68
	3	<0.90	19	42	15	0	0	76
		≥0.90	2	60	27	2	0	91
Total			50	312	91	29	10	492



In 49 (15.1%) observations when the Alloclassic femoral stem was used, the presence of radiolucent lines along the stem of the prosthesis, more pronounced in the proximal region, was detected. No such lines were found when using the SL-PLUS MIA stem.

In our study, we could not detect the intensity and localization of radiolucent lines depending on the varus-valgus position of the stem (Table 6).



Table 6. Localization of radiolucent lines around the femoral stem depending on its position in the canal and possible association with aseptic loosening

Femoral stem	Position in the canal	No lines	Localization of radiolucent lines according to the Gruen zones				Total
			1 zone	2 zones	3 zones	4 or more zones
Alloclassic	Varus	79	6	4	4	2	95
	Neutral	137	2	10	1	6	156
	Valgus	60	1	6	1	6	74
	Total	276	9	20	6	14	325
Revision due to FS aseptic loosening		2	1	0	0	3	6
SL-PLUS MIA	Varus	49	0	0	0	0	49
	Neutral	78	0	0	0	0	78
	Valgus	40	0	0	0	0	40
	Total	167	0	0	0	0	167
Revision due to FS aseptic loosening		0	0	0	0	0	0



However, the presence of radiolucent lines may be a sign of gradual loosening of the femoral stem. Odds ratio for aseptic loosening of the Alloclassic stem in the presence of radiolucent lines is OR 12.178 (95% CI: 2.167-68.446; p = 0.003) (Fig. 6).



Fig. 6. A 49-year-old patient: bilateral hip dysplasia with high dislocation of the left hip (C2 according to Hartofilakidis) and low dislocation of the right hip (B2 according to Hartofilakidis). In June 2011, left THA was performed with a shortening osteotomy according to Paavilaainen. In March 2012, right THA was performed (a). On follow-up X-rays in February 2014, radiolucency lines are already detected in zones 1, 2, 6, and 7 of Gruen (b). However, until the beginning of 2020, there were no clinical manifestations of femoral component loosening. On X-rays in September 2020, the radiolucency lines became more pronounced (c), and the patient complained of hip pain after loading. Revision of the femoral component was performed (d)

On follow-up X-rays in February 2014, radiolucency lines are already detected in zones 1, 2, 6, and 7 of Gruen (b). However, until the beginning of 2020, there were no clinical manifestations of femoral component loosening. On X-rays in September 2020, the radiolucency lines became more pronounced (c), and the patient complained of hip pain after loading. Revision of the femoral component was performed (d)



Correlation between radiologic signs, functional scale scores and patient satisfaction

Presence of radiolucent lines in case of patients with the Alloclassic stem was accompanied by reduced functional scores according to all scales compared to patients who did not have radiolucent lines. The average level of pain syndrome in these patients was higher, and the degree of satisfaction with the results of the surgery was lower. This difference was highly statistically significant for all parameters (Table 7).



Table 7. Correlation between the presence of radiolucent lines, patients’ functional state according to the OHS and HHS scales, VAS pain score and satisfaction index in the Alloclasic group

Scale	Radiolucent lines	Statistical values
		Мean value	Ме	IQR 25–75%	Min–Max
HHS	Yes	87.8	89.0	87.0–90.0	72.0–97.0
	No	94.3	94.0	94.0–95.0	87.0–97.0
OHS	Yes	41.9	42.0	40.0–43.0	36.0–48.0
	No	44.9	46.0	45.0–47.0	36.0–48.0
VAS	Yes	3.1	3.0	2.0–4.0	0.0–7.0
	No	0.4	0.0	0.0–0.0	0.0–6.0
Satisfaction index	Yes	7.9	8.0	7.0–9.0	6.0–10.0
	No	9.3	10.0	9.0–10.0	6.0–10.0

Group values for all scales are highly statistically significantly different in all groups (р<0.001).



DISCUSSION

This retrospective study showed that the wedge-shaped non-cemented rectangular stems developed by Karl Zweymüller provide reliable long-term results. Survival rate for revision for aseptic loosening of the Alloclassic stems was 98.2% at a mean follow-up period of 166.3 months and 100% for the SL-PLUS MIA stems at 37.5 months. Both types of stems had high HHS and OHS values and high patient satisfaction index independent of the stem design. This is consistent with the generally accepted notion of a high efficacy of primary total hip arthroplasty using non-cemented rectangular wedge-shaped stems [16, 17, 18, 19].

Analysis of X-rays in dynamics showed that the development of the classical phenomenon of stress-shielding syndrome (as described by C. Engh [14]) depended on the time elapsed since the arthroplasty, but was observed in a number of patients already 12 months after surgery. Similar changes were observed by other researchers [20, 21]. According to our data, the risk factor for the development of severe stress-shielding syndrome when using Zweymüller stems is a tight fit in the distal part of the stem (canal filling index in the Gruen zone 3 is 0.98 and more), especially in combination with a funnel-shaped canal (Dorr type A). However, all other things being equal, the tight distal fit of the SL-PLUS MIA stems, despite the similar geometry of the distal part, does not lead to such a frequent manifestation of severe stress-shielding syndrome. According to S. Nakamura et al., bone loss around the Zweymüller stems does not depend on the peculiarities of the femoral anatomy, but the follow-up period in their work did not exceed 12 months. [21].

Other unfavorable variants of bone remodeling are radiolucent lines at the prosthesis-bone interface [22]. Appearance of this phenomenon also depended on the follow-up period, but it was observed only in patients with the Alloclassic stem. Mean follow-up period in the group with the presence of radiolucent lines was 103.5 months in patients with the Alloclassic stem, with a minimum follow-up period of 12 months, and 76.2 months in patients with no radiolucent lines. Mean follow-up period with the SL-PLUS MIA stem was 35.4 months, which is significantly shorter than the mean period with the Alloclassic stem and does not exclude the development of this phenomenon in the future. At the same time, the minimum term at which the lines are detected is 12 months. It is possible that the absence of this phenomenon in the group with the SL-PLUS MIA stems is due to the peculiarities of its design, in particular, the presence of hydroxyapatite coating in the proximal part, especially since the maximum follow-up period of these stems in our study is 60 months. Probable influence of the hydroxyapatite coating in the proximal part of the stems is also confirmed by a comparative study by A. Tanaka et al. in which they found radiolucent lines when using the SL-PLUS MIA stems with hydroxyapatite in comparison with the SL-PLUS MIA stems without hydroxyapatite, in which lucent lines were found in 6% of cases [23]. On the other hand, D. Hoornenborg et al. did not observe a positive effect of hydroxyapatite coating on Zweymüller stems with regard to their possible migration [24, 25].

In our study, we have found out that the presence of radiolucent lines can negatively affect the functional outcome and postoperative patient satisfaction, but the presence of radiolucent lines in three or more Gruen zones is an independent risk factor and an important predictor of aseptic loosening of the stem.

It appears that despite the high survival rates, Alloclassic stems are less predictable in terms of stress remodeling of the periprosthetic femoral region, and under unfavorable circumstances (funnel-shaped canal and tight distal fit) there is an increased risk for aseptic loosening in the distant period. According to the results of our study, the redesign of the proximal part of the Zweymüller stem implemented in the SL-PLUS MIA stem improved the nature of adaptive remodeling in the periprosthetic zone of the femur, possibly improving the long-term results of primary hip arthroplasty. However, longer follow-up periods are required to make a definitive judgment about the possible benefits of the SL-PLUS MIA stem.

DISCLAIMERS

Author contribution

Shubnyakov I.I. — study concept and design, drafting the article.

Riahi A. — study concept and design, data collection and processing, writing the article.

Sereda A.P. — data analysis and interpretation, drafting the article.

Cherkasov M.A. — data collection and processing.

Khujanazarov I.E. — study concept and design, drafting the article.

Tikhilov R.M. — study concept and design, draf-ting the article.

All authors have read and approved the final version of the manuscript of the article. All authors agree to bear responsibility for all aspects of the study to ensure proper consideration and resolution of all possible issues related to the correctness and reliability of any part of the work.

Funding source. This study was not supported by any external sources of funding.

Disclosure competing interests. The authors declare that they have no competing interests.

Ethics approval. Not applicable.

Consent for publication. Written consent was obtained from the patients for publication of relevant medical information and all of accompanying images within the manuscript.

¹ American Joint Replacement Registry. Annual report 2020. Available from: http://www.ajrr.net/publications-data/annual-reports.

² Australian Orthopaedic Association. National Joint Replacement Registry, 2022 Annual Report. Available from: https://aoanjrr.sahmri.com.

³ National Joint Registry for England, Wales, Northern Ireland and the Isle of Man 19^th Annual Report 2022. Available from: https://www.njrcentre.org.uk.

⁴ Norwegian Hip Arhtroplasty Register Annual Report 2021. Available from: http://nrlweb.ihelse.net.

⁵ Swedish Hip Arthroplasty Register. Annual Report 2021. Available from: https://registercentrum.blob.core.windows.net/slr/r/SAR-Annual-Report-2021-SJlAFmlRl5.pdf.

⁶ The German Arthroplasty Registry (EPRD — Endoprothesenregister Deutschland). Annual Report 2020. Available from: https://www.eprd.de.
