Lowering of the Patella — prevention and treatment of a rare complication during leg lengthening: a case report

Full Text

INTRODUCTION

Various complications have been described relative to bone lengthening or bone transport treatment with the Ilizarov method [1, 2, 3, 4, 5, 6]. In contemporary literature, no one described the complications involving patella height. The patella baja, also referred as patella infera, is a condition involving decreased patellar height [7, 8, 9, 10]. It can be congenital or can be acquired as the result of a traumatic injury or a surgical procedure [11, 12, 13, 14, 15, 16, 17].

Aim of the study — to describe such a rare iatrogenic complication as patella baja during leg lengthening with the Ilizarov method using a clinical case as an example.

CASE PRESENTATION

We present the case of a 17-year-old patient who suffered an open fracture of the left femur and left leg following a motorcycle accident in January 2017 (Figure 1).

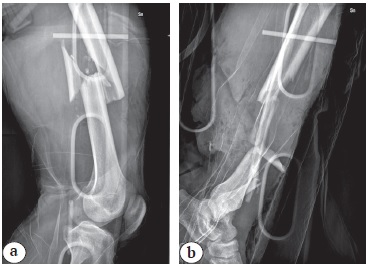

Figure 1. X-rays show a diaphysis fracture of the right femur (a) and fracture and bone defect of the distal third of the tibia and fibula (b)



Initially the treatment was begun in another hospital. An external fixator for damage control orthopedics (DCO) was applied, for both femur and tibia. Surgical debridement of soft tissue and bone was performed to the distal third of the leg. A flap was set up to cover the loss of substance as soon as the inflammation rates returned to normal. After 4 weeks, the temporary leg external fixator was converted with the Ilizarov fixator. An antegrade bifocal bone transport with proximal metaphyseal osteotomy was chosen to fill a 10 cm bone defect (Figure 2).



Figure 2. AP and lateral X-rays showing first Ilizarov fixator: a — a yellow line makes evident the level of proximal metaphyseal osteotomy; b — a yellow arrow indicates the distal part of tibial tubercle



At the end of the bone transport, a further revision of the docking site was carried out. The femur fixator was removed after 7 months while the leg fixator was removed after 1 year after trauma.

At the end of the treatment, the patient showed modest limitation of knee flexion (ROM 180-80°).

In October 2018, he was evaluated at our hospital for clinical signs of infection with the presence of sinus and drainage in the distal third of the left leg. After clinical evaluation it was requested FDG PET-CT (fluoro-D-glucose positron emission computed tomography), which highlighted and confirmed the focus of osteomyelitis in correspondence with the previous docking site (Figure 3). To complete the diagnosis, x-ray and CT scan of the leg was performed (Figure 4).

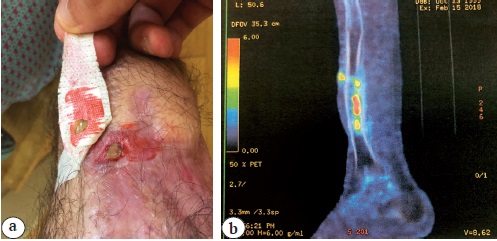

Figure 3. Clinical signs of infection with sinus and drainage (a); FDG PET-CT shows and confirms infection with uptake at the level of previous docking site (b)



Figure 4. Lateral X-ray (a) and CT scan (b) before second Ilizarov fixator: a — purple and blue lines show the Caton-Deschamps ratio (lower limit of 0.60). A white oval shows area of tibial tubercle; b — purple lines delimit atypical extension of the patellar tendon



The strategies of treatment were to resect the osteomyelitis focus and perform a new proximal metaphyseal tibial osteotomy for antegrade bifocal bone transport with the Ilizarov technique (Figure 5). During the lengthening process, the patient experienced increasing pain, the flexion was limited to 120°. X-rays of the patella infera with the Caton-Deschamps ratio negative of 0.51 (normal = 1.3±0.6) were obtained (Figure 6).

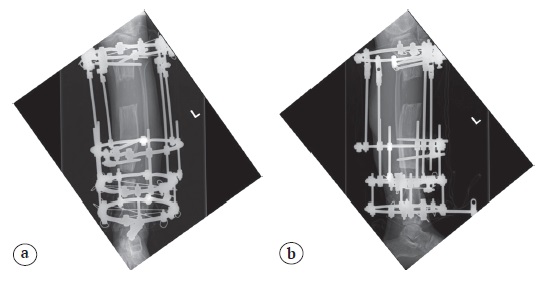

Figure 5. AP (a) and lateral X-rays (b) at the beginning of bone transport. Note the patella height continues to get worse (b)

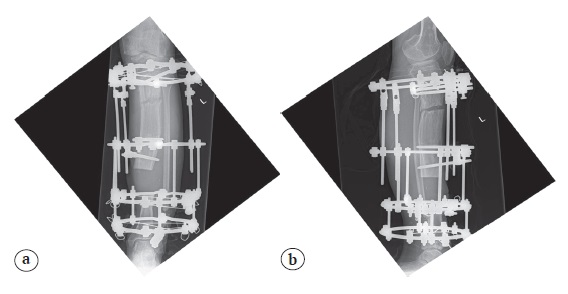

Figure 6. AP (a) and lateral X-rays (b) close to the end of bone transport when lowering of the patella was clinically evident (the Caton-Deschamps ratio negative)



We decided to bring the patient back to the operating room to perform revision of tibial tubercle e patellar tendon. In the operative room, we stabilized first the patella with two transeverse 1.8 mm olive K-wires connected with a half-ring and interconnection with three threaded rods to proximal tibial ring. Attempting to lift the patella proximally, we detected a subcutaneous tension distal to the proximal tibial ring. We tried percutaneous partial tenotomy of the patellar tendon with 11-blade scalpel without any positive result. At this point we decided to inspect the patellar tendon through an incision of 10 cm. We noted atypical presence of the patellar tendon in continuity with the distal fragment of osteotomy crossing longitudinally the whole regenerated site. We performed a lengthening of the patellar tendon with Z-plasty to restore the regular height of the patella. The tendon was sutured in knee flexion (Figure 7).

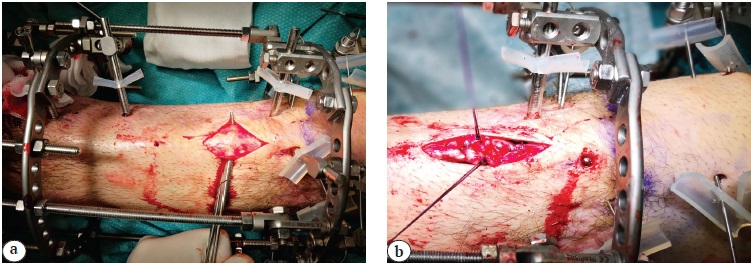

Figure 7. Surgical field views. Atypical length of the patellar tendon in continuity with the distal fragment of transported bone (a). Z-plasty of patellar tendon to restore the correct patella height. On the right side of the picture, K-wires blocking the patella at the correct height are observed (b)



The clinical improvement was immediate with a prompt recovery of knee flexion (ROM 180-90°) and the Caton-Deschamps ratio ranges from 0.51 to 0.83. The external fixator was removed in March 2020 after consolidation was achieved at the docking site and regenerated bone. The Caton-Deschamps ratio comparable to the post-operative one confirmed the correct patellar height (Figure 8). The patient returned to his usual activities of daily living without any sequelae affecting the knee.



Figure 8. AP (a) and lateral X-rays (b) after Ilizarov fixator removal: a — note healing of regenerated bone and docking site; b — restoring of the correct patella height (the Caton-Deschamps ratio of 0.83)



DISCUSSION

When dealing with osteotomy surgery, some rules must be considered. In deformity cases the osteotomy level should be performed in accordance with the CORA strategy [18].

A further aspect to consider are osteotomies in relation to tendon insertions. In knee surgery, high tibial osteotomy interventions aim to modify the axis but being proximal to the tibial tubercle, they modify its height and length of the tendon [19]. Meticulous knowledge of anatomy can prevent complications [20]. Furthermore, when performing an osteotomy, anatomical interindividual variations must be taken into account [21, 22].

Considering all these elements when approaching leg lengthening treatment without deformity, the choice of osteotomy site should be performed in the metaphyseal region. The reasons are to exploit the great regenerative potential of both bone and soft tissue and to avoid modifying the extensor mechanism [4, 23, 24]. This principle must be even more stressed when planning treatment for large bone defects.

In addition to these factors, as we have appreciated in this case report, previous interventions must also be considered. Reevaluating the case presented, the first osteotomy for bone transport was performed at the upper limit of the metaphyseal area of the tibia and, comparing the evolution of the Caton-Deschamps ratio, partially involved the tibial tubercle from the beginning.

In fact, reviewing the preoperative x-ray and CT scan, the patella showed values at the lower limits of the Caton-Deschamps ratio, and the CT showed an anomalous anatomy of the patellar tendon with extension well beyond the tibial tubercle.

Among various complications related to treatment with the Ilizarov apparatus, we have mentioned joint stiffness [25]. This may have been a confounding factor in the approach to the second proximal tibial osteotomy for bone transport.

Although the osteotomy level was performed in the full metaphyseal region and well below the hypothetical tibial tubercle, it was not possible to avoid a further increase in patellar lowering.

The strict clinical and radiographic monitoring during the treatment made it possible to identify the patella baja and to intervene promptly to restore an adequate patellar height as well as avoid any type of sequelae.

Complications during treatment with the Ilizarov method are well known and have already been the subject of case series reviews [1, 2, 3, 4, 5, 6]. As it has been already well described by D. Paley, complications during the treatment can be divided into problems and obstacles [3].

In this case report, lowering of the patella certainly represented an obstacle, because of which it was necessary to return the patient to the operating room.

Despite this deviation from the treatment plan, the Z-plasty technique proved effective in correctly resting the patellar height [8]. Furthermore, the possibility of stabilizing the patella and fixing it with the elements of the Ilizarov apparatus contributed to the consolidation, confirming the versatility of the method [26].

CONCLUSIONS

When facing the limb lengthening treatment, it is certainly recommended to carry out serial outpatient controls, so to evaluate any onset of complications and promptly resolve them.

The level of osteotomy plays a fundamental role in the success of the treatment not only to obtain good quality of osteogenesis but also to avoid involving tendon insertions.

We recommend a preoperative MRI examination in particular in such cases presenting joint stiffness already treated with proximal tibial osteotomy for leg lengthening.
